| Product Name: | Absolute Fuel Pressure Sensor | Pressure Range: | -1-0-1 Bar.....600 Bar Optional |
|---|---|---|---|
| Pressure Type: | Gauge Pressure Absolute Pressure Sealed Pressure | Accuracy: | 0.5%FS Water Pressure Sensor |
| Output Signal: | 4~20mA/0-10V/0-5V/1-5V | Power Supply: | 24VDC 12VDC 5VDC 8-30VDC |
| Process Connection: | M20X1.5 Male;1/8''NPT Male Customized | Temperature Compensation: | 0℃~50℃ |
| Application: | Water Oil Air Pressure Measurement Transducer | Certificate: | CE RoSH |
| Highlight: | 10V miniature pressure transducer,600 Bar mini pressure sensor,4mA miniature pressure transmitter |
||

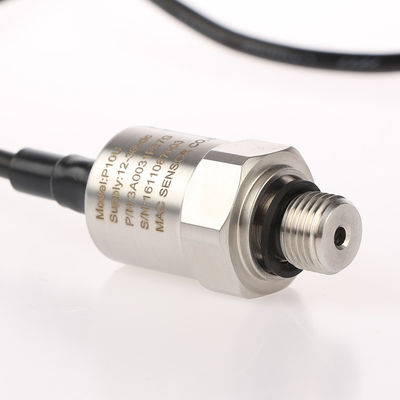

600 Bar 10V 4mA Miniature Pressure Sensor For Water Tank
Air Compressor Pressure Transducer with temperature output for water monitoring for oil pressure use high quality imported flush ceramic sensor signal sensing element, through automatic testing, laser trimming compensating zero and sensitivity in wider temperature range the amplifier circuit is in stainless steel housing, transforming sensor signal into standard output signal. Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable, having excellent flexibility, sensitivity and diversity. The product is widely used for pressure measure and control of petroleum, chemi-industry, metallurgy, power station and hydrology, etc.
Features
- Measuring ranges from 0~1.5Bar ....0~600bar
- Absolute, gauge and sealed gauge
- Accuracy: ±0.5%FSO
- Calibrated and temperature compensated
- Stainless steel construction
- Variety of Pressure & Electrical connections
- Output 4...20mA,0...10V,0...5V and others
Applications
- Process control systems
- Refrigeration and HVAC controls
- Hydraulic systems and valve
- Machine building
- Pumps and compressors
- Water pipe and water tank
- Fuel pipe and Fuel tank
- And so on
Specification
|
Pressure Range: |
-1-0-1 Bar.....600 Bar Optional |
||||
|
Pressure Type: |
Gauge pressure; Negative pressure; Absolute pressure optional |
||||
|
Accuracy: (Linearity Hysteresis Repeatability) |
≤ ±1.0%F.S (Standard) ≤ ±0.5%F.S (Customized) Optional. |
||||
|
Medium Temp: |
-30℃~85℃ |
||||
|
Ambient Temp: |
-30℃~80℃ |
||||
|
Storage Temp: |
-40℃~85℃ |
||||
|
Temperature Compensation: |
0℃~50℃ |
||||
|
Overload: |
150% F.S. |
||||
|
Housing material: |
304 Stainless Steel |
||||
|
Diaphragm material: |
Ceramic |
||||
|
Process material: |
SUS304 Stainless Steel or by customized |
||||
|
Medium compatible: |
Compatible with 304/316 Stainless Steel |
||||
|
Electronic Wire: |
2 or 3 wires |
3 Wires |
|||
|
Output: |
4~20mA |
0~5V/1~5V |
0~10 V |
0.5~4.5 V Ratiometric |
Special customized |
|
Power Supply: |
12~36 V DC |
8~36 V DC |
15~36Vdc |
5 V DC |
Special customized |
|
Insulate resistance: |
>100M Ω @50V |
||||
|
Electronic connection: |
Terminal Box (DIN43650 Hirschman Connector, IP65); Directly sealed cable IP67; M12 4 Pins connector IP65; Packard 3 Pins Connector IP67 are optional. |
||||
|
Pressure connect port: |
1/8’’NPT male, 1/4’’NPT male 1/4’’NPT Female, G1/2’’ male, G1/4’’male/female, 7/16’’-20 UNF male/female are optional. (by Customized) |
||||
|
Certificate approving: |
CE Certificate. |
||||
|
Water Proof: |
IP65 to IP67 |
||||
|
Weight: |
Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable) |
||||
|
Remarks: |
Special applications request by Customized |
||||
