| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Product Name: | Alarm Digital Miniature Water Liquid Lpg Cng Air Oil Pressure Sensor | Accuracy: | 0.5%FS, 0.25%FS Gauge Pressure Sensor |
|---|---|---|---|
| Output Signal: | 4-20mA, 0-5V, 1-5V, 0-10V, 1-10V Pressure Sensor Alarm | Power Supply: | 10~30Vdc Digital Pressure Sensor |
| Pressure Range: | 0-1000 Bar Pressure Sensor | Overload Pressure: | 200% FS (2X) Pressure Sensor Lpg |
| Operating Temp.: | -40~+120°c Miniature Pressure Sensor | Material: | 316 Stainless Steel Of Air Pressure Sensor |
| Process Connection: | DIN 43650, Packard, Cable Connection, You Can Oem | Cycle Life: | 1000000 Pcs Sensor Pressure |
| Port: | Xi'an Or Any Other Port Of China | ||
| High Light: | Digital miniature pressure transducer,1000bar mini pressure sensor,1000bar miniature pressure transmitter |
||

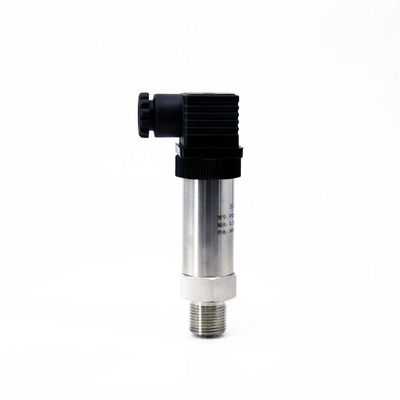

316 Stainless Steel 1000bar Digital Miniature Pressure Sensor
pressure sensor is a standard and most popular transmitter applied in air and liquid pressure measuing are cost effective products featuring mass production and low cost.
The products are made of stainless steel. the pressure sensing elements chips are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. The products are approved with CE, intrinsically safe, and explosion proof certificates. Customized structures and output formats can be designed according to special application requirements.
Feature of pressure sensor
1. MEMS technology
2. Imported silicon sensor chip employed
3. Perfect long term stability
4. CE certificate
5. OEM service provided
6. Sillicon sensor cell employed
Our advantage of gauge pressure sensor
Production process of oil pressure sensor
Specification of air pressure sensor
|
pressure medium |
gas liquid compatible stainless steel |
|
pressure ranges |
0~2...1000bar |
|
overload pressure |
150%FS |
|
output signal |
4~20mA, 0~5V, 0~10V, 1~5V |
|
accuracy |
0.5%FS (standard) |
|
load resistance |
RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output) |
|
long term stability |
<0.25%FS/year |
|
supply voltage |
10~30V |
|
compensated temperature range |
-10~70°c |
|
operating temperature range |
-40~+120°c |
|
storage temperature range |
-40~+140°c |
|
temperature coefficient of zero |
0.3%FS/10°c |
|
temperature coefficient of span |
0.3%FS/10°c |
|
insulation resistance |
>100MΩ@ 50VDC |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
material of wetted part |
1Cr18Ni9Ti |
|
material of pressure membrane |
316L |
|
material of housing |
1Cr18Ni9Ti |
|
weight |
180g |
Dimension of miniature pressure sensor
Application of water digital pressure sensor
1. Industrial process control
2. Energy and water treatment
3. Liquid pressure system and switch
4. Pipeline pressure testing
