| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Accuracy: | 1%FS | Measured Media: | Liquid, Gas And Steam |
|---|---|---|---|
| Output: | 0.5-4.5VDC | Input: | 4.75-5.25VDC |
| Storage Temperature: | -40~110°C | Work Temperature: | -20~70°C |
| Electrical Connection: | Cable Outlet | Mechanical Connection: | NPT |
| IP Rate: | IP65 | Housing Material: | Brass |
| High Light: | 20bar automotive oil pressure sensor,Ceramic Capacitive diesel oil pressure sensor,Brass Housing car oil pressure sensor |
||

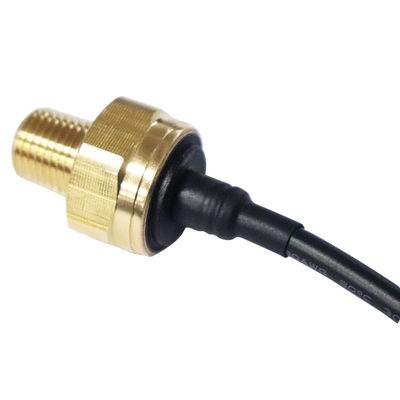

Brass Housing 20bar Ceramic Capacitive Engine Oil Pressure Sensor
| Applicable media | Liquid, gas, steam |
| Pressure range | 0-10bar, 0-20bar |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurement | Gauge pressure, sealing pressure, absolute pressure |
| Output | 0.5-4.5VDC |
| Power supply | 4.75-5.25VDC |
| Accuracy(linearity, hysteresis and repeatability) | 1%F.S. |
| Work temperature | -20~70ºC |
| Ambient temp | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) |
±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable outlet |
| Mechanical connection | 1/4NPT |
| Housing material | Brass |
Applications:
1, Automobile,Compression Engine and Refrigeration Industry
2, Engineer Machinery,Industrial Process Control and Monitoring
3, Energy Resources and Water Treatment System
4, the Field of Iron and Steel,Light Industry and Environmental Protection
5, the Equipment of Medical Treatment,Agricultural Machinery and Detection
6, Hydraulic and Pneumatic Control System
7, Air Conditioning Unit and Refrigeration Equipment
8, Internal-Combustion Engine,Locomotive Brake System and Testing Jig
Mechanical Dimension:
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
