| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |

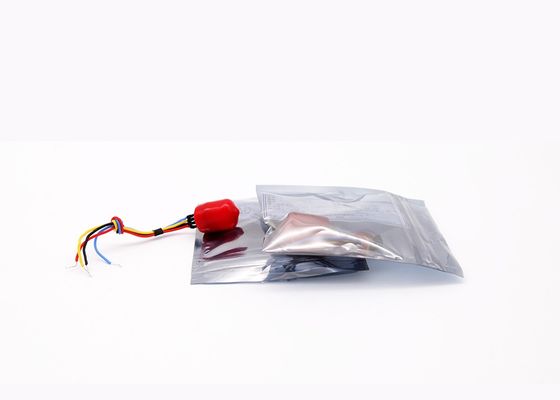

| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Range: | 0......350KPa......70MPa | Output: | 133+/-33 MV DC |
|---|---|---|---|
| Power Supply: | Max 2.0 MA DC | Response Time: | Max 1 Ms |
| Impact: | 100g,11ms | Humidity: | (50%±10%)RH |
| Highlight: | Diffused Silicon miniature pressure transducer,70MPa mini pressure sensor,Engine Oil miniature pressure transmitter |
||

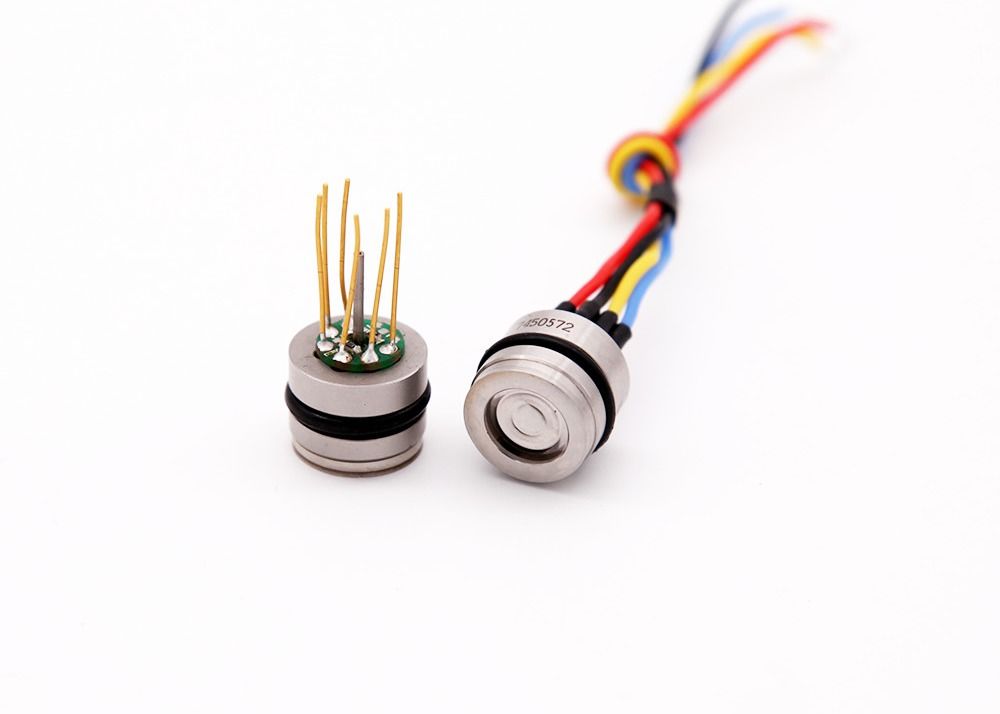

Diffused Silicon Miniature Pressure Sensor For Automobile Engine Oil
Diffused Silicon Pressure Sensor is an isolated oil - filled pressure sensor core with high performance, low cost and small size. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability. This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.
Features:
Applications:
Outline Construction:(Unit: mm)
<20MPa ≥20MPa
Specification:
Construction Condition | |
Diaphragm material | SS 316L |
Housing material | SS 316L |
Pin Wire | Kovar/100mm silicone rubber wire |
Back pressure tube | SS 316L (gauge and negative pressure only) |
Seal ring | Nitrile rubber |
Electrical Condition | |
Power supply | ≤2.0mA DC |
Impedance input | 2.5kΩ~5 kΩ |
Impedance output | 2.5kΩ~5 kΩ |
Response | (10%~90%):<1ms |
Insulation resistance | 100MΩ,100V DC |
Overpressure | 2 times FS |
Environmental Condition | |
Media applicability | Fluid which has no corrosion on stainless steel and nitrile rubber |
Shock | No change at 10gRMS,(20~2000)Hz |
Impact | 100g,11ms |
Position | Deviate 90° from any direction, zero change≤±0.05%FS |
Basic Condition | |
Environment temperature | (25±1)℃ |
Humidity | (50%±10%)RH |
Atmospheric pressure | (86~106) kPa |
Power supply | (1.5±0.0015)mA DC |
