| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |

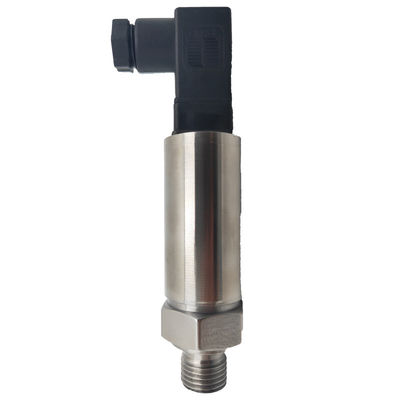

| Product Name: | Low Cost High Accuracy Miniature Pressure Transmitter Transducer | Output: | 4-20mADC 0-10VDC, 0-5VDC, 1-5VDC |
|---|---|---|---|
| Accuracy: | 1.0/0.5/0.25/0.1 | Application: | Level Measurement, Machinery, Metallurgy |
| Output Signal: | 4~20mA | Pressure Type: | Differential Presssure (D) |
| Pressure Range: | 0~250MPa/0~-0.1MPa | Power Supply: | 9-36VDC, 24VDC(+-5) |
| Process Connection: | Thread | Electrical Connection: | Cable / Aviation Plug / DIN Plug |
| High Light: | 5V miniature pressure transducer,Anti Lightning mini pressure sensor,150MPa miniature pressure transmitter |
||
|
Measurement medium:
|
Various liquids, gases or vapors compatible with 304, 316 or 316L stainless steel
|
|
Measuring range:
|
Gauge presurre: 0-350KPa / 0-150MPa
|
|
Accuracy class:
|
1.0/0.5/0.25/0.1/0.05
|
|
Output signal:
|
4～20mA
1～5V
0～5V 0.5～4.5V |
|
Power supply:
|
9～36VDC(Two-wire system)
24±5VDC(three-wire system)
|
|
Operating temperature:
|
-50 ~ 80 °C
|
|
Environment temperature:
|
-20～+85℃
|
|
Relative humidity:
|
≤95%(40℃)
|
|
Wetted material:
|
304, 316, 316L
|
|
Process connection:
|
M20 × 1.5, M12 × 1, G1 / 4, G1 / 2 male thread, etc.
|
|
Electrical connection:
|
Four-core shielded cable (protection class IP65), aviation plug, DIN connector
|
