| Pressure Range: | 2-600bar Gauge Pressure | Electrical Connection: | No Soldered Pads,welding Pins Or Cables |
|---|---|---|---|
| Power Supply: | 5-30VDC | Signal Output At Full Range: | 2mV-4mV/V |
| Bridge Resistance: | 11 KΩ ± 30% | Direct Contact Material With Liquid: | Al203-96% |
| Working Temperature Range: | -40 To +135℃ | Storage Temperature Range: | -55 To +150℃ |
| Temperature Drift: | ≤± 0.03%FS/℃ | Diameter: | 14mm/18mm |
| Highlight: | 600bar 30VDC Ceramic Pressure Sensor,600bar 5VDC Ceramic Pressure Sensor,30VDC ceramic pressure transducer |
||

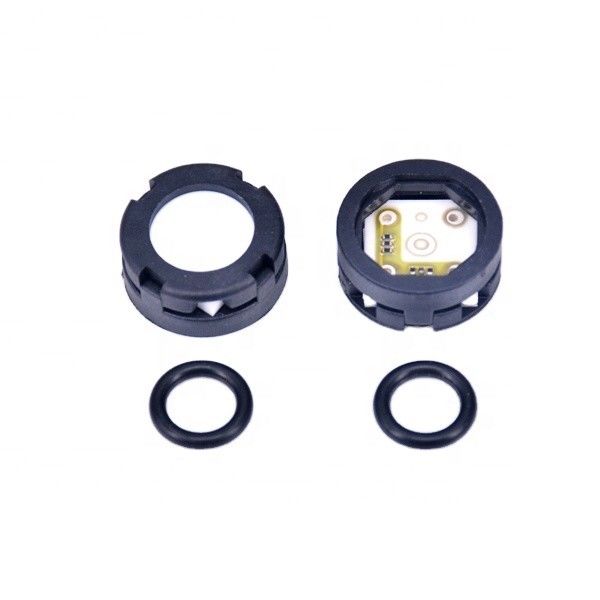

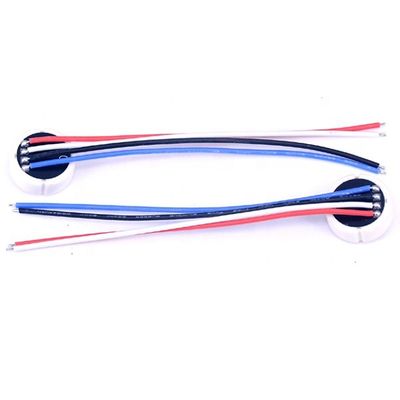

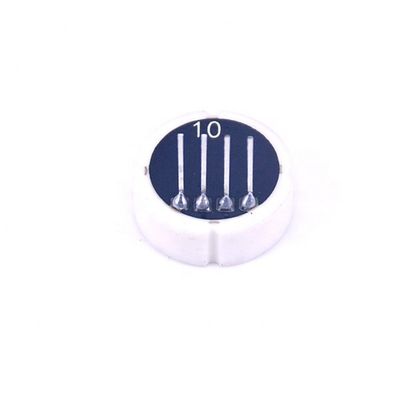

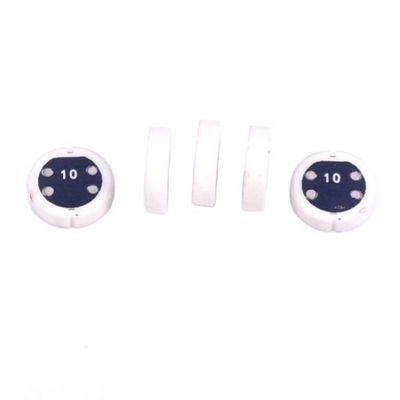

ceramic pressure sensor is made of high quality stainless steel structure, the core and the pressure sensor chips are imported from Germany, the use of digital calibration and compensation technology, and passed the safety certification and CE certification.Widely used in compressor, automobile, air conditioning and other field pressure measurement.
Technical Parameters:
|
Pressure Range |
2-600bar |
||||||||||||||
|
Pressure Type |
Relative |
||||||||||||||
|
Supply Power |
5-30VDC |
||||||||||||||
|
Signal Output at Full Range |
2mV-4mV/V |
||||||||||||||
|
Bridge Resistance |
11 KΩ ± 30% |
||||||||||||||
|
Zero Drift |
≤± 0.2mv/V |
||||||||||||||
|
Insulation Resistance |
>2KV |
||||||||||||||
|
Long-term Stability on Zero Point |
± 0.2%FS |
||||||||||||||
|
Direct Contact Material with Liquid |
Alumina Al203-96% |
||||||||||||||
|
Working Temperature Range |
-40 to +135℃ |
||||||||||||||
|
Storage Temperature Range |
-55 to +150℃ |
||||||||||||||
|
Temperature Drift |
≤± 0.03%FS/℃ |
||||||||||||||
|
Relative Humidity |
0-100% |
||||||||||||||
|
Range(bar) |
2 |
5 |
10 |
20 |
30 |
40 |
50 |
70 |
100 |
200 |
300 |
400 |
500 |
600 |
|
|
Burst Pressure(bar) |
6 |
15 |
30 |
60 |
90 |
100 |
125 |
175 |
200 |
350 |
450 |
550 |
650 |
750 |
|
Wiring Diagram and Outline Dimension:
|
Model No. |
Welding Disk |
Range Scale |
Diameter and Height |
Hole Size |
|
BX-PSC14 |
separate type |
if 10bar,will display:10 |
Ø13.5x6.35mm |
2-600bar:5mm |
|
BX-PSC14X |
separate type |
if 10bar,will display:10 |
Ø13.5x3.5mm |
2-600bar:5mm |
|
BX-PSC18 |
lie alongside |
if 10bar,will display:10 |
Ø18x6.35mm |
2-30bar:9.7mm 50-600bar:5mm |
|
BX-PSC18X |
lie alongside |
if 10bar,will display:10 |
Ø18x3.5mm |
2-30bar:9.7mm 50-600bar:5mm |
Dimensional Drawing(unit:mm):
