| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |

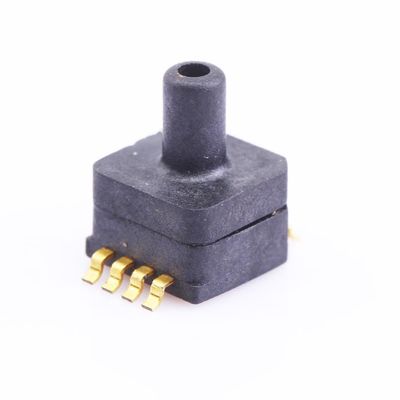

| Product Name: | Pressure Sensor | Pressure Range: | -100kPa~0kPa...1000kPa |
|---|---|---|---|
| Power Supply: | 5VDC | Output Signal: | 0.5-4.5V |
| Accuracy: | 1%Span | Pressure Type: | Gage Type |
| Measured Media: | Air And Non-Corrosive Gas Or Air Liquid | Compensated Temp.: | 0-60'C |
| Work Temperature: | -40 ~ 125'C | Ambient Temp: | -10~85'C |
| Highlight: | Silicone waterproof pressure transducer,1000kPa water level pressure sensor,4.5V digital water pressure sensor |
||
Feature
Application
For air pump, air compressor, pressure gauge and meter etc.
For Other fields, such as medical device, automotive, liquid level, diving equipment etc.
Performance Parameter
Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at a temperature of 25±1℃ and humidity ranging from 25%~85%.
| Item | Data | Unit |
| Power Supply | 5 | Vdc |
| Output Signal | 0.5-4.5(or by custom) | Vdc |
| Accuracy | ±1.0 | %Span |
|
Zero Temp.Coefficient |
±0.03 | %FS/℃ |
|
Span Temp.Coefficient |
±0.03 | %FS/℃ |
| Long Term Stability(1year) | ±1 | %Span |
| Over Pressure | 2X (≤500kPa) | Rated |
| 1.5X(≥500kPa) | ||
| Compensation Temp. |
0 ~ 60/32 ~ 140 |
℃/℉ |
| Ambient Temp. |
-10 ~ 85/14 ~ 185 |
℃/℉ |
| Storage Temp. |
-40 ~ 125/-40 ~ 257 |
℃/℉ |
Dimension&Electric Connection(Unit:mm/Inch)
PIN Definition
|
1 |
3 |
5 |
7 |
2 / 4/ 6 / 8 |
|
SDA |
VDD |
GND |
SCL |
NC |
NOTE:
1, N/C Pins must be left floating
2, Soldering of lead Pins:250’C for 5 sec max.
3, 0.1uf capacitor must be connected between VDD and GND
Notes
1. Implement ESD protection during soldering and assembly.
2. Overload voltage(6.5Vdc) or current(5mA) may burn the ASIC.
3. The medium must be compatible with the pressurized parts.
4. Please contact us for special request on parameter and application.
