| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Product Name: | Pressure Sensor | Output Signal: | 0.5-4.5V / 0-5V |
|---|---|---|---|
| Pressure Range: | 0~10bar | Supply: | 5V |
| Material: | Copper | Application: | Military/Aerospace, Measurement Instruments, Medical Electronics |
| Connection: | G1/4,G1/2,G3/8 | Accuracy: | >1.5% |
| Pressure Type: | Gauge Pressure | Type: | Digital Pressure Transmitter |
| High Light: | 5V water pressure transmitter,10Bar electronic water pressure sensor,Pumps waterproof pressure transducer |
||

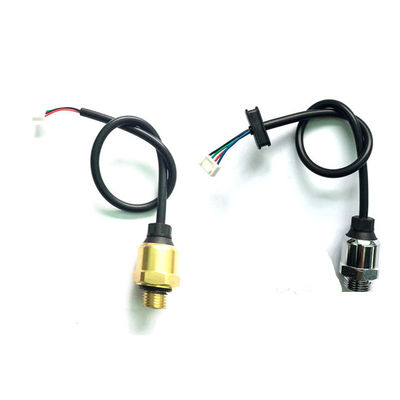

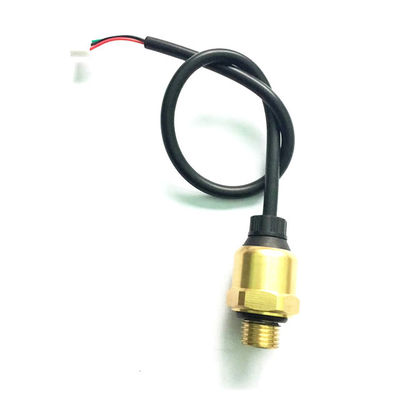

waterproof micro differential pressure sensor is a pressure sensor specially designed for water pumps and air compressors. It has good waterproof performance, small size, high cost-effective and easy to install. The shell is made of copper
with good sealing and corrosion resistance.
APPLICATION
Working Voltage : 5±0.5V
Overload Pressure:60Bar
The comprehensive accuracy at normal atmospheric temperature:>1.5%
SPECIFICATION
|
Parameter name |
Symbol |
Rated value |
Unit |
| Max.Pressure | Pmax | 6 | MPa |
| ESD Protection(MIL 883,Method 3015.7) | ±4 | kV | |
|
Storage temperature |
Tstg | -50 to 150 | ℃ |
|
Working temperature (gas) |
Ta | -40 to 125 | ℃ |
| Working temperature (water) | Ta | -10 to 100 | ℃ |
| Max.output current | Io+ | 0.5 | mAdc |
| Max.input current | Io- | -0.5 | mAdc |
FEATURES:
Compared with ordinary ceramic pressure transducers, we have made several improvements to make them suitable for water applications. Shell: Copper structure, good corrosion resistance;
Shock proof: It can withstand 3MPa pressure and effectively prevent the impact of water hammer.;
Moisture-proof: Prevent PCB from exporting in humid environment;
Circuit waterproofing: PCB adopts waterproofing measures;
Sealing: Internal radial seal is used to improve the reliability of the seal;
Connector: The straight-out sealing joint designed by our company reduces the volume and has good sealing performance;
EMC: Excellent circuit design, shell shielding, cable shielding, effectively reduce the strong electromagnetic interference caused by motor operation and start-stop.
