| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Application: | Water Treatment, Water Pump, Etc. | Power Supply: | 12~36VDC |
|---|---|---|---|
| Accuracy: | 0.5%FS | Output Signal: | 4~20mA |
| Process Connection: | G1/4, R1/4, NPT 1/4, Etc. | Electrical Connection: | Cable Connection |
| Overload Pressure: | 200%FS | Operating Temperature: | -40~85℃ |
| Warranty: | One Year | Port: | Shenzhen, Guangzhou, Xiamen, Or Other Ports |
| High Light: | 2.5MPa water pressure transmitter,IP68 electronic water pressure sensor,36VDC waterproof pressure transducer |
||

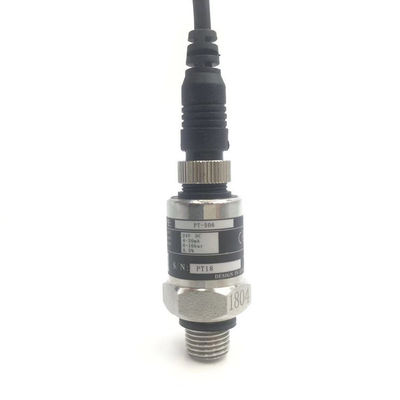

The pressure transmitter is specially designed according to the requirement of water treatment industry, it is widely used in variable frequency pump, complete water supply and air conditioning equipment, etc. Professional waterproof hammer impact, high electrical performance and long-term stability make it the first choice for similar industries, and can directly replace similar products such as Atlas, MSI, HUBA.
Advanced chip for signal conditioning with high integration bridge pressure sensor that meets AEC-Q100 standard, making the pressure transmitter a cost-effective product. With functions of 24-bit ADC for input voltage detection; High precision 1X~256X variable gain meter amplification; Up to 8 times the digital gain; Low temperature drift 16-bit DAC; Built-in universal sensor based on MCU calibration logic; EEPROM multi-programmable.
Features:
| Media | Oil (mineral, screw compressor oil), water, air, etc. |
| Power Supply | 12VDC~36VDC |
| Accuracy | 0.2%FS - 0.5%FS |
| Pressure Range | 0 - 2.5MPa |
| House Material | Stainless steel |
| Output | 4 - 20mA |
| Temperature Drift | ±0.02% FS/K |
| Operating Temperature | -40 ~ 85℃ / -40 ~ 185℉ |
| Overload Pressure | 2*FSO |
| Electrical Connection | Aviation plug |
| Process Connection | G1/4, NPT1/4, R1/4, etc. |
| Response Time | <1ms |
| Protection Level | IP68 |
| Weight | 160g |
| Certificates | CE, ISO |
| Warranty | 12 Months |

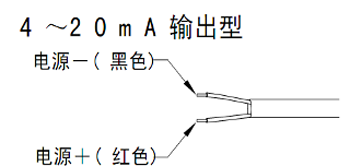

Wiring:
Electrical Connection:
| Output | 4-20mA | 0-10VDC, 0.5-4.5VDC |
| Power supply+ | Red | Red |
|
Current Output/Power supply- (Two-wire) |
Black | Black |
|
Current Output/Voltage output (Three-wire) |
Green |
