316L 19mm Piezoresistive Silicon Pressure Sensor Transducer

316L 19mm Piezoresistive Silicon Pressure Sensor Transducer

    • 316L 19mm Piezoresistive Silicon Pressure Sensor Transducer
    • 316L 19mm Piezoresistive Silicon Pressure Sensor Transducer
    • 316L 19mm Piezoresistive Silicon Pressure Sensor Transducer
  • 316L 19mm Piezoresistive Silicon Pressure Sensor Transducer

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE;ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Stardard Export Packing By carton
    Delivery Time: 5-10days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20,000 pcs per month
    Contact Now
    Detailed Product Description
    Pressure Range: 0~20 KPa...35MPa Overpressure: 1.5 Times FS
    Long-term Stability: 0.1%FS/year Diameter: 19mm Standard Pressure Sensor
    Material: 316L Stainless Steel Input Impedance: 3kΩ~8kΩ
    Product Name: Price Of Piezoresistive Silicon Pressure Transducer Sensor Pressure Type: Gauge, Absolute, Sealed Gauge
    Media: General Gas,liquid Wider Temperature Compensation: -10°C~ 80°C
    Selling Units: Single Item Single Package Size : 10X10X10 Cm
    Single Gross Weight: 0.500 Kg
    Highlight:

    316L 19mm Pressure Sensor Transducer

    ,

    35MPa Pressure Sensor Transducer

    ,

    316L 19mm Electronic Pressure Sensor

    316L 19mm Piezoresistive Silicon Pressure Sensor Transducer



    Product Description



    High stable sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die, housing with outer diameter Ø19mm 316L stainless steel housing. Wider temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitting onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal.



    Main features

    • Pressure range: 0~20 kPa...35MPa
    • Gauge, absolute, sealed gauge
    • Constant current power supply
    • Isolated construction, enable to measure various media
    • Ø19mm standard pressure sensor
    • Full stainless steel 316L
    • Wider temperature compensation -10°C~+80°C
    • Long-term stability 0.1%FS/year

    Application
    • Industrial process control
    • Level measure
    • Gas, liquid pressure measure
    • Pressure meter
    • Pressure calibrator
    • Liquid pressure system and switch
    • Refrigeration equipment and air conditioner
    • Aviation and navigation inspection

    >> Specification



    Electric Specification
    Power supply ≤2.0mADC
    Electric connection Kovar pin or 100mm silicon rubber flexible wires
    Common mode voltage output 50% of input (tye.)
    Input impedance 3kΩ~8kΩ
    Output impedance 3.5kΩ~6kΩ
    Response(10%~90%) <1ms
    Insulation resistor 100MΩ,100VDC
    Overpressure 1.5 times FS

    Construction
    Diaphragm stainless steel 316L
    Housing stainless steel 316L
    Pin Kovar
    O-ring Viton
    Net weight ~16g

    Environment Condition
    Position deviate 90° from any orientation, zero change ≤0.05% FS
    Shock no change at 10gRMS,(20~2000)Hz
    Impact 100g, 11ms
    Media compatibility the gas or liquid which is compatible with construction material and Viton

    Basic Condition
    Media temperature (35±1)°C
    Environment temperature (35±1)°C
    Shock 0.1g(1m/S/S)Max
    Humidity (50%±10%)RH
    Local air pressure (86~106)kPa
    Power supply (1.5±0.0015)mAD

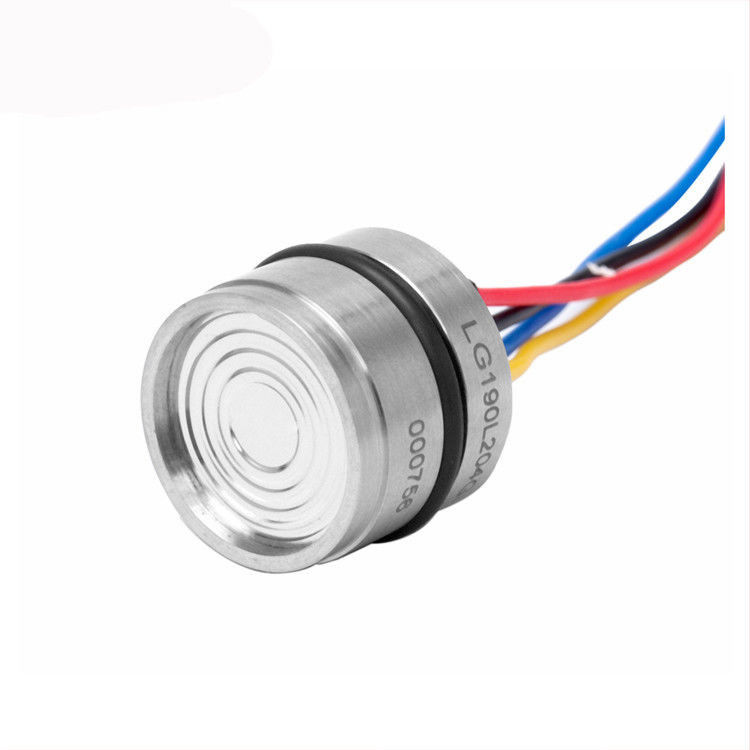

    316L 19mm Piezoresistive Silicon Pressure Sensor Transducer 1



    >> Application

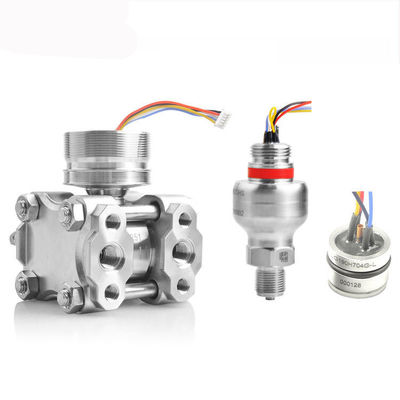

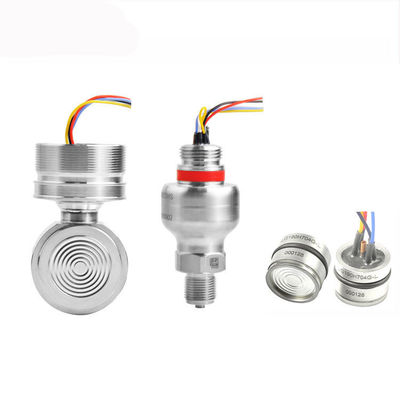

    316L 19mm Piezoresistive Silicon Pressure Sensor Transducer 2
