| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Measured Media: | Liquid, Gas And Steam | Output Signals: | 4~20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C |
|---|---|---|---|
| Accuracy: | 0.2%F.S, 0.5%F.S | Pressure Range: | 0-300KPa~10MPa |
| Protection Class: | IP65 | Ex-proof: | ExiaII CT4/CT6, ExidIICT6 |
| Housing Material: | 304SST | Power Supply: | 24VDC/12VDC/5VDC/3.3V |
| Electrical Connection: | Packard, M12, DIN43650, Cable | Keywords: | Pressure Transmitter/Pressure Sensor |
| High Light: | IP65 Electronic Pressure Transducer,Capacitive Pressure Transmitter Sensor,10MPa Electronic Pressure Sensor |
||
|

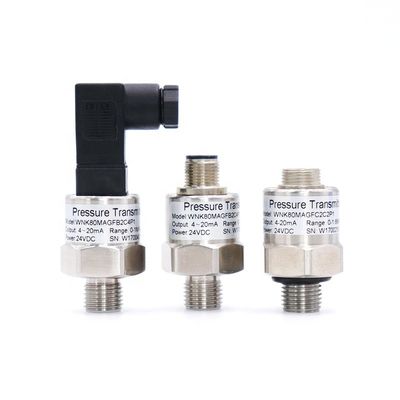

Applicable media
|
Liquid, Gas
|
|
Pressure range
|
0-7kPa~350bar
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
Power supply
|
24VDC/12VDC/5VDC/3.3V
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
power(electrical) connect
|
Parkard, M12, DIN43650, Cable outlet
|
|
Mechanical connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
Protection
|
IP65
|
