| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Product Type: | High-precision General Pressure Transmitter | Pressure Range: | 0-60MPa |
|---|---|---|---|
| Accuracy: | 0.5%FS 1%FS | Operating Temperature: | -20~60℃ |
| Supply: | 12-28VDC ( 24VDC ) | Output Signal: | 4-20mA |
| Shell: | Stainless Steel | Application: | Liquid, Gas, Water |
| Electric Protection: | Reverse Connect Protection, Anti Frequency Interference | Connector: | M20*1.5, G1/2, G1/4 , ZG1/4,R1/4(selectable) |
| Port: | Shanghai | ||
| High Light: | 60MPa diff pressure transmitter,IP65 Differential Pressure Transmitter,60MPa differential pressure transducer |
||

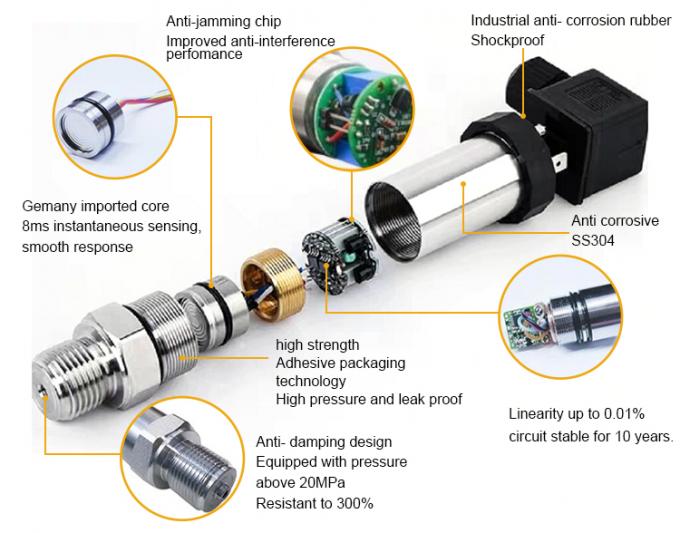

high precision pressure transmitter adopts imported chip as the sensing chip.The transmitter has the followed advantages: compact structure, excellent anti-jamming performance of the internal circuit, full sealing stainless steel interface.
The design of IP65 protection grade and explosion-proof type ensure the use in various environments and situations.Excellent long-term stability and high precision of the MD-G series pressure transmitter can be widely used in a variety of fields.
Application
• Medical equipment
• Machine automation
• Source and water treatment system
• Medical equipment
• Hydraumatic and pneumatic system
• Agricultural machinery
• Pump&compressor
• Engineering machinery
• Other automatic control and inspection systems
| Range | 0-60MPa |
| Overload Pressure | ≤10MPa 200% ; >10MPa 150% |
| Response Time | <10ms |
| Accuracy grade | 0.5%FS ,1%FS |
| Long-term Stability | Typical:±0.1%FS/year |
|
Temperature effect on zero |
Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Sensitivity Temperature drift | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Operating Temperature | -20~60℃ |
| Compensation Temperature | -10~ 70℃ |
| Storage Temperature | -40~100℃ |
| Electric Protection | Reverse connect protection, Anti frequency interference |
| Protection Grade | IP65(DIN), |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | G1/4, G1/2, M20*1.5, ZG1/4,R1/4(selectable) |
| Shell |
Stainless Steel |
| Supply | 12-28VDC (Typical:24VDC) |
| Output Signal | 4-20mA |
