| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Color: | Black And Silver | Range: | -1~4...100bar , 0~2...3bar , 0~61bar...600bar,0~4...60bar |
|---|---|---|---|
| Output: | 4~20mA / 0.5~4.5V / 1~5V / 0~10V | Accuracy: | 0.5%FS, 1.0%FS |
| Output Mode: | Two-wired Or Three-wired | Proctection Grade: | IP 67 |
| Electrical Connection: | Packard, DIN43650C, DIN72585, M12, Cable | Pressure Connection: | Male G1/4, NPT 1/4, 7/16-20UNF, M20X1.5, G1/2... |
| Response Time: | 10ms | Medium Temperature Range: | -40 °C~+100 °C |
| High Light: | 600bar automotive oil pressure sensor,20mA diesel oil pressure sensor,Ceramic car oil pressure sensor |
||

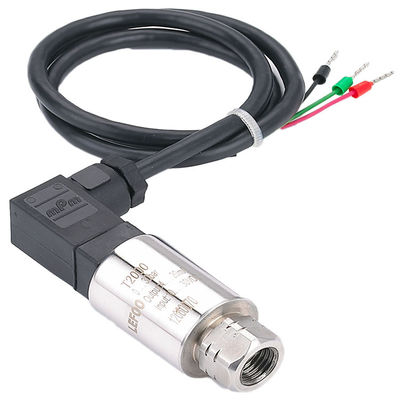

High Precision 20mA 600bar Ceramic Automotive Oil Pressure Sensor
Product Description
The pressure sensor is a ceramic pressure sensor that is temperature compensated and laser trimmed for accurate span and offset calibration. The typical advantage is the compact size, which make it convenient to be installed in small room. Some typical applications for these pressure sensor are: Process control and automation, compressors and pumps, engine controls, off road vehicles to name few.
Product Specifications:
|
Measuring Range |
0~4…60bar (nomal range) |
|
-1~4…100bar , 0~2…3bar , 0~61bar…600bar |
|
|
Output / Power Supply |
4~20mA / 12~30VDC (2 wire) |
|
0.5~4.5V / 5VDC (3 wire ) |
|
|
0/1~5V / 10~30VDC/AC (3 wire ) |
|
|
0~10V / 12~30VDC/AC (3 wire ) |
|
|
Accuracy: ±0.5%F.S,±1.0%F.S |
|
|
Stable: ±0.5%F.S, ±1.0%F.S (Max) |
|
|
Overload Capability: 1.5 times full scale |
|
|
Burst Pressure: 3 times full scale |
|
|
Response time : 10ms |
|
|
Medium Temperature Range : -40 °C~+100 °C |
|
|
Temperature Influence Automatically Amending Range : -10°C~+80°C |
|
|
Storage Temperature Range: -50 °C~+125°C |
|
|
Sample line connection: male G1/4, NPT1/4, M20×1.5, G1/2, 7/16-20UNF(other connection is available on request) |
|
|
Electrical Connection: Packard, DIN 43650C , M12 Series, Cable |
|
|
Protection Class: IP67 |
|
|
Pressure Form: Guage pressure |
|
|
Insulation Resistance: >100M Ω@50V |
|
|
Electro Magnetic Compatibility: EN50081-1/-2; EN50082-2 |
|
|
Material |
Enclosure: 1Cr18Ni9Ti Stainless Steel |
|
Connection: 1Cr18Ni9Ti Stainless Steel |
|
|
Wet material: Ceramic |
|
Product Dimensions(mm) :
