| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Title: | -1bar-0bar Atmospheric Pressure Sensor 0-10v | Range: | -100kPa~0...0~10kPa...100MPa |
|---|---|---|---|
| Accuracy: | 0.5%,0.25% | Output: | 4~20mA,0~5Vdc,1~5Vdc,0~10Vdc,0.5~4.5Vdc |
| Power Supply: | 12~36V DC | Pressure Type: | G, A, S |
| Protection: | IP65, IP68 | Customized: | Acceptable |
| OEM: | Acceptable | Overload: | 150%FS |
| Highlight: | 100MPa 10V atmospheric pressure transmitter,100MPa 10V Atmospheric Pressure Sensor,100MPa 100mv Atmospheric Pressure Sensor |
||

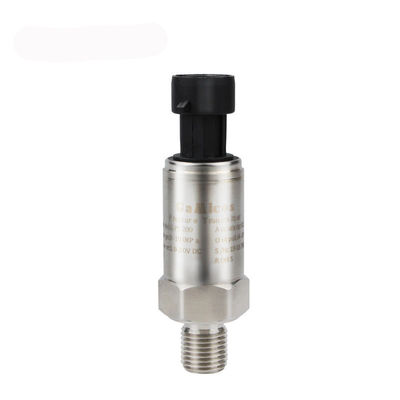

Waterproof 10V Atmospheric Pressure Sensor For Air Compressor
pressure sensor is standard and most popular transmitter applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. The pressure transmitter is designed for industry application with perfect long term stability.
|
Range |
-0.1...0~0.01...100MPa |
|
Type of pressure |
Gauge (G), absolute (A), sealed gauge (S) |
|
Accuracy |
±0.5%FS, ±0.25%FS |
|
Output Siginal |
4-20mA 1-5V/0-5V 0.5~4.5V 0~10V 100mv |
|
Power |
10-30V 5V |
|
Overload |
150%FS |
|
Long term stability |
±0.2%FS/ year |
|
Material |
Housing: 304 stainless steel Sensor: 316L stainless steel |
|
Pressure connector |
M20×1.5, G1/2, G1/4, NPT1/2, etc. (customized) |
|
Electrical connection |
cable connection, DIN43650 , plug connection,parked |
|
Ingress protection |
IP65 |
|
Explosion proof |
Intrinsically safe explosion proof ExiaⅡCT6 |
|
Operating temp. |
-20~85℃ |
|
Temp. coefficient on zero |
±1.5%FS |
|
Temp. coefficient on span |
±1.5%FS |
In order to meet different connection requirements, it has designed four electrical connections.They are DIN43650 , cable connection , plug connection , packard.
Standard IP65 Protection Grade
Suitable for waterproof and dustproof environment
Diffusion silicon oil filled core body
Long service life,low drift
Stainless steel housing
Suitable for all kinds of complicated installation environment, durable and not easy to get rusty
Process control system Oil pumpdrilling Chemical industry
HVAC Natural gas Hydraulic control system
Air compressor Oil pumpdrilling Pump&water system
Refrigeration system Food industry Others
