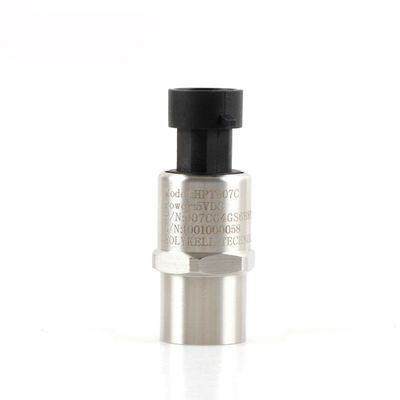

60Bar Ceramic Pressure Sensor

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	CE;ISO

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Stardard Export Packing By carton
Delivery Time:	5-10days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20,000 pcs per month

Contact Now

Detailed Product Description

Pressure Range:	0-2 Bar.....60Bar	Output:	0.5-4.5V
Power Supply:	5VDC	Accuracy:	1%F.S
Thread:	Thread 1/4 NPT Male	Electronic Connect:	Packard Connector 3 Pins
Temperature:	-10-85 Centigrade (customized)	Material:	Stainless Steel
Application:	Oil Air Water Pressure Measurement	Cable:	1m Free
Highlight:	60Bar ceramic capacitive pressure sensor , 4.5V ceramic pressure transmitter , Light weight ceramic pressure transducer

60Bar Ceramic Pressure Sensor

Products Description

1. Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
2. Suitable for civil use product batch
3. Static accuracy: plus or minus 1.0% FS
4. Pressure range 0-1.2 MPa (can be customized according to customer requirements)
5. Wide range of temperature compensation
6. Medium for non-corrosive gas, water, oil, etc

Pressure Range	0-2 Bar.....60Bar
Typical Accuracy	1%F.S
Max Error	± 1.5 %FS~±3%F.S. (including 0 ~ 90 ℃ temperature error)
Working Temp	-30℃~105 ℃
Storage Temp	-40℃~85℃
Supply voltage	5.0 ± 0.5VDC; 24VDC, 12~36VDC.....
Measures media	Air, water, oil and other non-corrosive, non-solvent medium
Vibration	10Hz,3mm/ one hour
Remarks	Special applications request ,can custom by order
