| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Range: | -100kPa...0kPa~20kPa...70MPa | Signal: | 24-bit High Accuracy Analog To Digital Convertor |
|---|---|---|---|
| OutPut Protocol: | I2C Interface Protocol | Temperature Compensated: | Real Time |
| Dimension: | Compact Size | Media: | Fluid And Gas |
| Highlight: | 70MPa miniature pressure transducer,70MPa mini pressure sensor,3.6VDC miniature pressure transmitter |
||

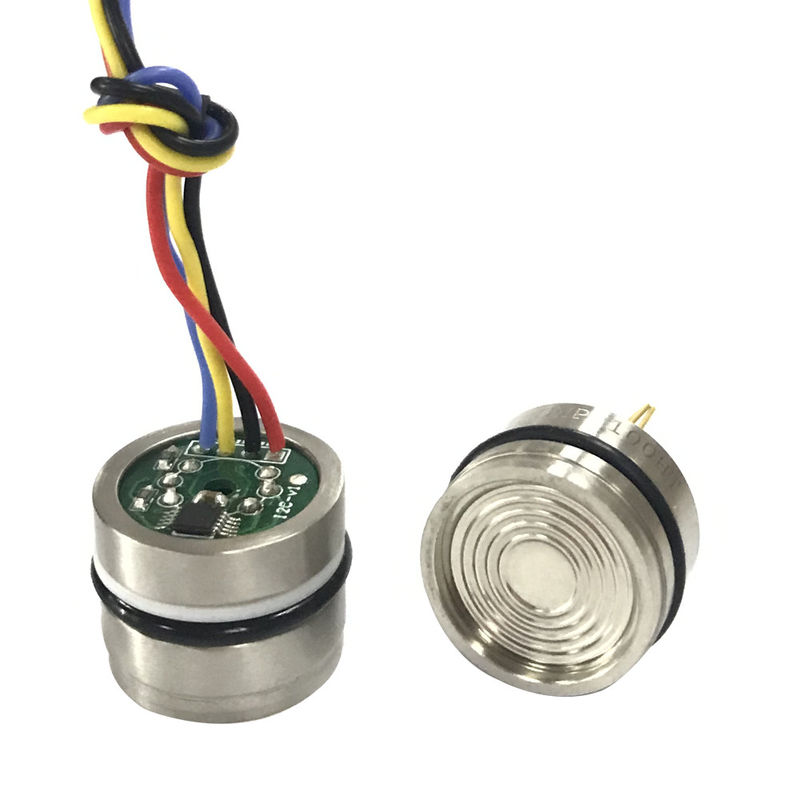

3.6VDC Miniature Pressure Sensor
Features:
Applications:
Outline structure(unit:mm)
Range<20MP Range≥20MPa
Electrical Connection:
|
Item |
definition |
Wire color |
|
1 |
V+ |
Red |
|
2 |
V- |
Black |
|
3 |
SDA |
Yellow |
|
4 |
SCL |
Blue |
Specification:
|
Electrical characteristics |
|
|
Range |
0~100kPa……0~70MPa |
|
Overload |
1.5 times FS |
|
Accuracy |
±0.1%F.S. BFSL@25℃ |
|
Total error |
±1.0%F.S. (Includes calibration error and temperature drift effects) |
|
Input voltage |
1.8V~3.6VDC |
|
Output |
15%~85% (I 2 C Bus protocol) |
|
Working current |
≤0.3mA,Standby current is about 0.1μA |
|
Operating temperature |
-10℃~80℃ |
|
Storage temperature |
-40℃~125℃ |
|
Long-term stability |
±0.2%FS/year |
Output Conversion:
|
Percentage output(%) |
Digital quantity (decimal) |
Digital quantity (hexadecimal) |
|
0 |
0 |
0x000000 |
|
10 |
1677722 |
0x19999A |
|
15 |
2516582 |
0x266666 |
|
85 |
14260633 |
0xD99999 |
|
90 |
15099494 |
0xE66666 |
|
100 |
16777215 |
0xFFFFFF |
