| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stardard Export Packing By carton |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000 pcs per month |
| Accuracy: | 0.1%F.S | Application: | Water Oil Air Pressure Measurement |
|---|---|---|---|
| Pressure Type: | Gauge Pressure Absolute Pressure Sealed Pressure | Pressure Range: | 1-400bar |
| Material: | 316L Stainless Steel | Medium Temperature: | -30~+80 Degree |
| Stability: | 0.5%FS/ 3 Years | Process Connection: | 1/2NPT |
| Protection Class: | IP65 | Product Name: | Water Pressure Data Logger Pressure Transducer For Air Compressor |
| Port: | Shanghai | ||
| Highlight: | 400bar water pressure transmitter,24VDC electronic water pressure sensor,60MPa waterproof pressure transducer |
||

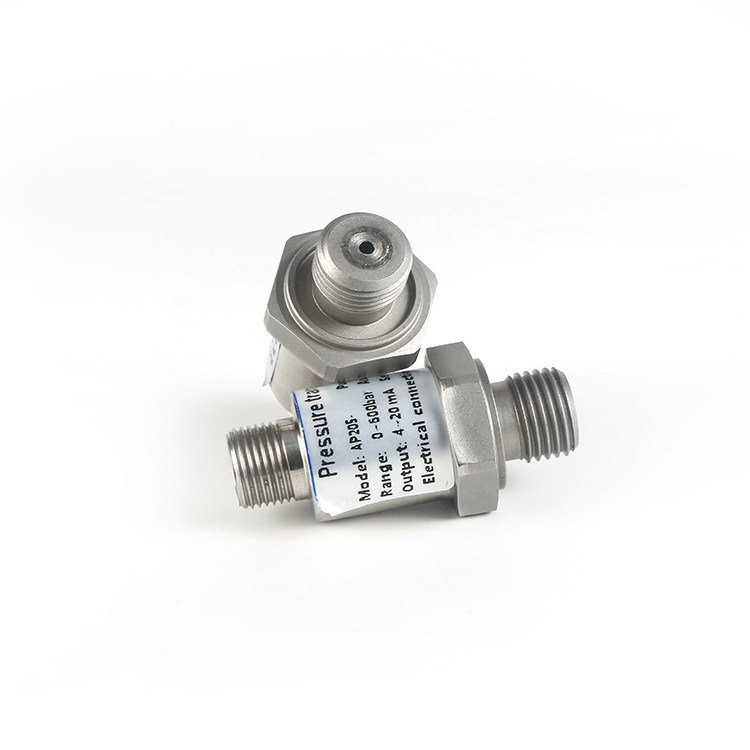

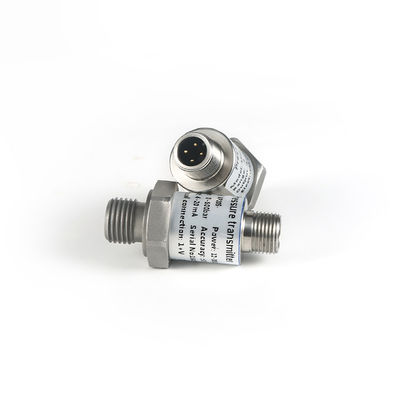

The pressure transmitter is designed for applications such as air conditioning refrigeration and water treatment control equipment, such as booster pumps, air compressors and air conditioning systems. It is also suitable for a variety of other industrial applications, with a variety of structural forms and diverse output formats. A variety of pressure connections to meet most application requirements. Compact, especially suitable for installation in tight spaces.
Feature:
1. Original European core sensor
2. Monocrystalline silicon pressure chip
3. Accuracy up to 0.1%F.S
4. Fast response time
5. All SS316L welding sealed construction
6. Various hazardous area approvals
| Range | -100kPa--0~6kPa--60MPa | ||
| pressure type | gauge | absolute | seal |
| Power supply | 24VDC | 5VDC | |
| Output | 4-20ma, 0-10V , 485RTU | 1-5V, 0-5V, 0.5-4.5V | |
| Precision level | 0.1 | 0.25 | 0.5 |
| Temperature coefficient | 0.1%FS10℃ | 0.2%FS10℃ | 0.25%FS10℃ |
| Temperature influence | 0.2%FS(-20--65℃) | 0.5%FS(-20--65℃) | 1%FS(-20--65℃) |
| Electrical connection | Direct Lead, M12 Navigation plug,Hirschmann, Parker Connector, Customization | ||
| Process connection | G1/8(M), G1/4(M),G1/2(M),NPT1/8(M),NPT1/2(M),NPT1/4(M),M20*1.5(M) Flat diaphragm customization | ||
| Diaphragm material | stainless steel 316 | Hastelloy C | customization |
| Explosion-proof performance | Exd II BT 4(optional), only suitable for Direct Lead electrical connection | ||
| Ambient temperature | -20℃~80℃ | ||
| Ambient temperature | -30℃~100℃ | ||
| Ambient temperature | -40℃~80℃ | ||
| Degrees of protection | IP65 | ||
| Insulation resistance | >100MQ/500VDC | ||
